Single Beam Cranes

Name: Single Beam Cranes
Brand: AARYA ENGINEERING
Price: 1000000 INR
Availability: InStock

Price 1000000 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

Single Beam Cranes Specification

Crane Traveling Speed
15 m/m

Feature
Other

Condition
New

Recommend Power
380-415 Volt-Ampere (VA)

Trolley Travel Speed
15 MPM

Crane Total Weight
4000 Kilograms (kg)

Usage
Industrial

Crane Type
Girder

Height
2 TO 25 Meter (m)

Application
Storage Yard, Warehouse, Factory, Outdoor Yard, Ship Building, Railway, Workshop, Hydro power, Material Yard

Product Type
Single Beam Cranes

Span Length
3 to 40 Meter (m)

Weight
10000 Kilograms (kg)

Loading Capacity
1 to 10 Tonne

Color
GOLDEN YELLOW

Lifting Time
4 Week

Lifting Capacity
50 Tonne

Length
3 TO 150 Meter (m)

Width
3 TO 40 Meter (m)

Lifting Height
6 Meter (m)

Control Type
Pendant

Limit Switch
Yes

Emergency Stop
Yes

Warranty
12 Month

Single Beam Cranes Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
5 Per Month

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

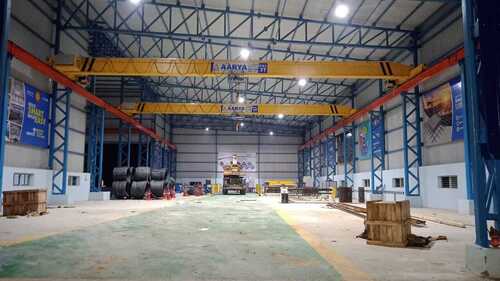

About Single Beam Cranes

AARYA ENGINEERING are engaged in manufacturing and supplying high quality range ofSingle Beam Eot Crane.which are used for moving loads in different such as up, down, right and left easily. These machines are widely acclaimed for their qualities like high performance and optimum quality. The offered machines are manufactured using premium quality basic raw materials that is procured from our trustworthy vendors of the industry. Further, these Single Girder E.O.T. Cranes are available in various standard and tailored specifications which are offered at the most reasonable prices.

Features:

Aarya Design cranes have high quality structural assembly,
Aarya Design cranes have minimum maintenance and emergency interlude
Easily adjustable limit-switches For All motions.
Load tested to 125% For Breaking applications.
Safe and easy to use
Efficient performance
Low & Easy Of Maintenance
Chipper In Cost
Easy of Installation.
Low head Room
Safe & reliable.

Range of Specifications:

Safe Working Load: 500 kgs to 50,000 kgs
Span: 3 mtrs to 30 mtrs
Height of Lift: As per customer specifications
Class of Duty / Standards: Equivalent to M3,M5, M7, M8 as per IS 3177 / IS 807
Speeds: Selected depending on client specifications / applications / shed dimensions
Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control / cabin with master control
Drive System: Twin Drive At L Type or Open Reduction Type Wheel through Squirrel Cage 3 Ph. Induction BBl Make Motors with fail to safe Disc / Shoe brakes.
Motors: Squirrel Cage Induction Motors For All Motion With with built-in fail to safe brakes Disc/ Shoe for Hoisting, Cross Travel as well as Long Travel. Insulation Class for all motors F
Brakes: Built-in Shoe / Disc Brakes for Hoisting, Cross Travel and Long Travel motions
Power Supply System: To Hoist and Cross Travel through Trailing Cables By festoon / Drag Chain To Crane through Shrouded Bus Bars (depending on customer's choice and application)

Versatile Load Handling

These single beam cranes are engineered for a diverse range of loading capacities between 1 and 20 tonnes, making them ideal for both light and heavy lifting tasks in various industrial sectors. Adjusting to different spans and lengths, the cranes are highly adaptable to changing operational requirements, ensuring efficient material transport across your facility.

Designed for Safety and Efficiency

Equipped with advanced safety features such as limit switches and emergency stops, the crane prioritizes operator protection. Electric pendant control offers precise handling, while steady trolley and traveling speeds of 15 meters per minute provide controlled movement for both lifting and transporting loads.

Built for Rugged Industrial Use

With heavy-duty construction, a durable paint finish in yellow or golden yellow, and industrial-grade components, these cranes are tailored for environments like storage yards, workshops, shipyards, and material depots. Their reliable performance ensures seamless workflow, even in challenging outdoor or indoor settings.

FAQ's of Single Beam Cranes:

Q: How is the load capacity determined for single beam cranes?

A: The load capacity for single beam cranes is specified based on the maximum weight they can safely lift. This range spans from 1 to 20 tonnes, depending on the chosen model and its configuration. It's important to select a crane with a capacity that matches your operational requirements to ensure safe and efficient handling.

Q: What safety features are incorporated in these single beam cranes?

A: These cranes come equipped with important safety features, including pendant control operation, limit switches to prevent over-travel, and an emergency stop function. Such features are standard to minimize the risk of accidents and facilitate secure lifting activities.

Q: When is it appropriate to use a single beam crane in industrial applications?

A: Single beam cranes are best suited for environments where moderate to heavy lifting is required across spans between 3 and 40 meters. Typical applications include warehouses, workshops, outdoor storage yards, shipbuilding facilities, and railway yards.

Q: Where can these cranes be installed?

A: Installation is versatile and can accommodate a wide variety of environments, including indoor factories, covered warehouses, outdoor yards, material depots, shipyards, and hydro power stations. Their adaptable span and height design support varied layout and space needs.

Q: What is the typical installation and commissioning process for this crane?

A: Once ordered, the single beam crane's average lifting time from installation to operation is about four weeks. Professional assembly, alignment, and comprehensive safety checks are performed before commissioning, ensuring smooth integration into your workflow.

Q: How does the electric power supply support crane operations?

A: The cranes are powered by an electric supply of 380-415 VA, providing consistent and robust energy for both lifting and travel movements. This ensures reliability and steady performance during demanding industrial operations.

Q: What are the benefits of choosing a single beam crane for your facility?

A: Investing in a single beam crane increases operational efficiency, enhances workplace safety, and allows for flexible material handling across various industrial sectors. The robust construction, long service life, and manufacturer-backed warranty further contribute to lower maintenance costs and long-term reliability.
