સિંગલ બીમ ક્રેન્સ

About સિંગલ બીમ ક્રેન્સ

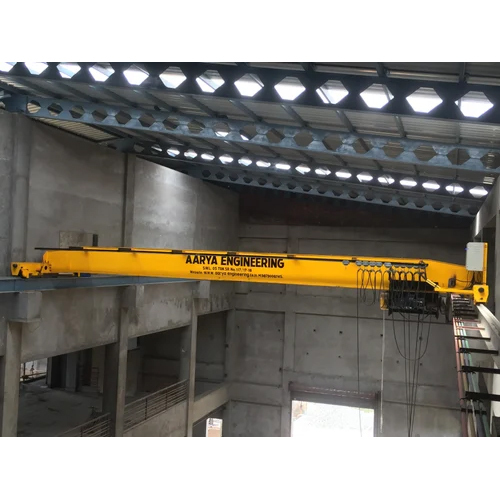

AARYA ENGINEERING are engaged in manufacturing and supplying high quality range ofSingle Beam Eot Crane.which are used for moving loads in different such as up, down, right and left easily. These machines are widely acclaimed for their qualities like high performance and optimum quality. The offered machines are manufactured using premium quality basic raw materials that is procured from our trustworthy vendors of the industry. Further, these Single Girder E.O.T. Cranes are available in various standard and tailored specifications which are offered at the most reasonable prices.


Features:

• Aarya Design cranes have high quality structural assembly,
• Aarya Design cranes have minimum maintenance and emergency interlude
• Easily adjustable limit-switches For All motions.
• Load tested to 125% For Breaking applications.
• Safe and easy to use
• Efficient performance
• Low & Easy Of Maintenance
• Chipper In Cost
• Easy of Installation.
• Low head Room
• Safe & reliable.

Range of Specifications:

• Safe Working Load: 500 kgs to 50,000 kgs
• Span: 3 mtrs to 30 mtrs
• Height of Lift: As per customer specifications
• Class of Duty / Standards: Equivalent to M3,M5, M7, M8 as per IS 3177 / IS 807
• Speeds: Selected depending on client specifications / applications / shed dimensions
• Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control / cabin with master control
• Drive System: Twin Drive At L Type or Open Reduction Type Wheel through Squirrel Cage 3 Ph. Induction BBl Make Motors with fail to safe Disc / Shoe brakes.
• Motors: Squirrel Cage Induction Motors For All Motion With with built-in fail to safe brakes Disc/ Shoe for Hoisting, Cross Travel as well as Long Travel. Insulation Class for all motors F
• Brakes: Built-in Shoe / Disc Brakes for Hoisting, Cross Travel and Long Travel motions
• Power Supply System: To Hoist and Cross Travel through Trailing Cables By festoon / Drag Chain To Crane through Shrouded Bus Bars (depending on customer's choice and application)

Versatile Load Handling

These single beam cranes are engineered for a diverse range of loading capacities between 1 and 20 tonnes, making them ideal for both light and heavy lifting tasks in various industrial sectors. Adjusting to different spans and lengths, the cranes are highly adaptable to changing operational requirements, ensuring efficient material transport across your facility.


Designed for Safety and Efficiency

Equipped with advanced safety features such as limit switches and emergency stops, the crane prioritizes operator protection. Electric pendant control offers precise handling, while steady trolley and traveling speeds of 15 meters per minute provide controlled movement for both lifting and transporting loads.


Built for Rugged Industrial Use

With heavy-duty construction, a durable paint finish in yellow or golden yellow, and industrial-grade components, these cranes are tailored for environments like storage yards, workshops, shipyards, and material depots. Their reliable performance ensures seamless workflow, even in challenging outdoor or indoor settings.
